ARRMA Quake Light Kit

MyTrickRC's ARRMA Quake Light Kit is the perfect upgrade for your 1/10th scale ARRMA Quake monster truck! Two High Brightness Underglow Light Bars light up your underside in the Color of your choice. The Light Bars mount safely and securely to your Vehicle Chassis.

Available Colors: White, Red, Green, Blue, Yellow, & Purple

Features

• Dual High Brightness Underglow Light Bars (Left & Right)
• Available in Six Color Options
• Powers directly off your Receiver
• Simple, hassle-free operation
• Easy Plug & Play Installation

What's Included

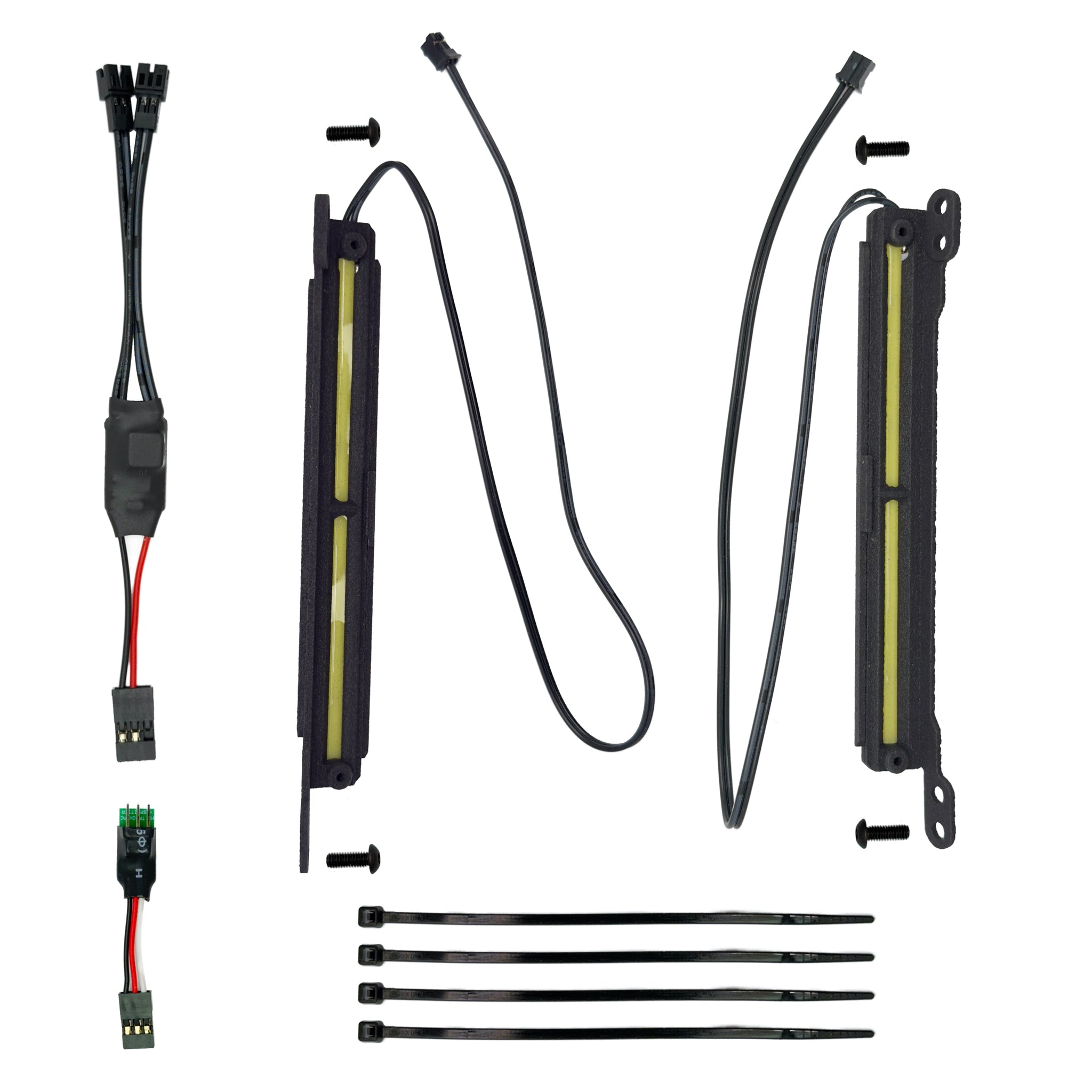

• Custom Scale Left and Right Underglow Light Bars
• Dual Output Attack Light Regulator
• Servo Splitter
• Mounting Screws, Zip Ties

Installing your Lights

To Trick Out your Quake, we only need a couple of tools for installing these parts.

• Allen Driver 2mm
• Nipper (for trimming Zip Ties)

Underglow Lights

Temporarily remove the Left Bracket Screw, then slip the Underglow's rear mounting tab under the Bracket.

Next, reinstall the screw - attaching the Left Underglow and Bracket to the Chassis.

Using one of the included screws, attach the Left Underglow's front mounting tab to the Vehicle Chassis.

Temporarily detach the Power Switch.

We're going to use the Power Switch and Screw...

to attach the Right Underglow to the Vehicle Chassis.

Remove the Right Bracket Screw and use it to attach the Right Underglow to the Bracket.

Connections

Connect both Underglow Lights to the Attack Regulator.

Connect the Attack Regulator to the Servo Splitter.

Unplug the Steering Servo from the Steering Socket. Our Lights will share power from the Socket with the Steering Servo.

Connect the Steering Servo to the Servo Splitter.

Connect the Servo Splitter to the Steering Socket.

Gather the Cables and Zip Tie them for a clean install.

Trim the Zip Ties flush to tidy them.

Here's how it should look with all the connections made.

Done! Admire your handiwork, then take this monster out for a test drive!

Note: You will have three screws left over unused. This is because the Quake and Gorgon share a Kit - the Gorgon is the one that requires these additional screws.
