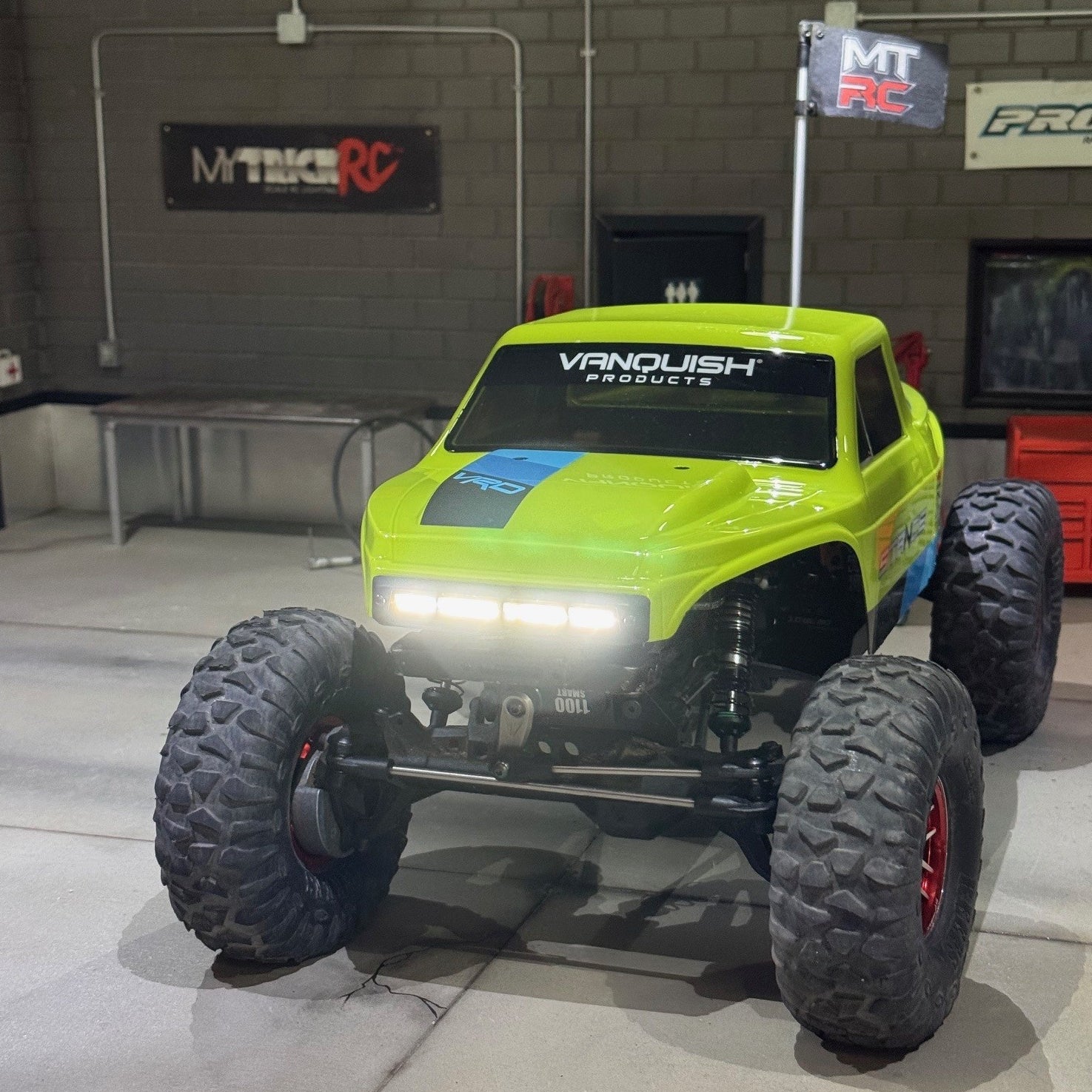

Vanquish VRD Stance Light Kit

Trick out your Stance with MyTrickRC's Vanquish VRD Stance Light Kit! This Light Kit is the perfect scale complement to your Vanquish VRD Stance competition offroad vehicle. The sleek, rugged, and light weight Scale Headlight Grill with integrated TrickStrip Lights goes perfectly with your rig. The Pro Rock Lights let you clearly see everything you're crawling over. Powering these is easy - simply plug them into the included MC-4 Lighting Controller and plug that into your Receiver.

Features

• Pre-assembled Custom Scale Headlight Grill with Built-In:
• High Brightness TrickStrip Lights
• Pro Rock Lights (4 lamp Pods on 1 High Power Plug)
• Simple, hassle-free operation
• Easy Assembly and Installation

Pro Rock Lights

Our scale Pro Rock Lights have four intensely bright lamps (one for each corner) to light up the whole undercarriage of your rig, flooding the rocks with light so you can grab that perfect line. The pods are grouped onto a single plug so they only take up a single High Power Port without needing any splitter cables.

Mini Compact 4-Output Lighting Controller

At the heart of this Light Kit is our MC-4 Lighting Controller. This powerful yet compact device lets you safely power your Rock Lights from a variety of power sources, while having spare output Ports so you can add more lights whenever you’re ready to expand.

Expandable Options for Adding More LEDs

The MC-4 has two High Power Ports (Black) and two Low Power Ports (White). You’ll use one of the black High Power Ports for the Pro Rock Lights, leaving you with a whole other High Power Port plus both Low Power Ports for future expansion. Want to add a Light Bar or Headlights or Tail Lights? The MC-4 lets you do this.

Each High Power Port (Black) can handle powering:

• 1pc Attack 5" or 6" Light Bar

OR 1 pair of

• Attack 17mm Round Wafer Headlights
• Attack 19mm Rectangular Wafer Headlights
• NEW Attack 7-LED Wafer Strip Light
• Attack Halo Headlights

OR

• 4 pairs of Attack Spot Lights, original Attack Headlights, Attack Rock Lights, or Attack 9mm Wafer Lights!

Each Low Power Port (White) can handle powering:

• 5mm or 3mm LEDs

MC-4 is a simple and safe way to add a Light Bar or Wafer Headlights to your rig. The compact size makes it easy to find a place to put it.

Flexible Options for Power Input

Our tiny MC-4 Lighting Controller gives you plenty of options for powering it. First, you can use the included Receiver/Servo Power Cable to power directly off your vehicle’s Receiver or Servo. Or you can add one of our Balance Port Power Connectors to power off either a 2S or 3S Battery Balance Port. MC-4 will safely accept the voltage coming from any of these and regulate it to 5VDC. That way if, say, your Receiver is outputting 7.4V, it’s not a problem - MC-4 will ensure your Attack Light Bars see only 5V and safely operate at their designed condition.

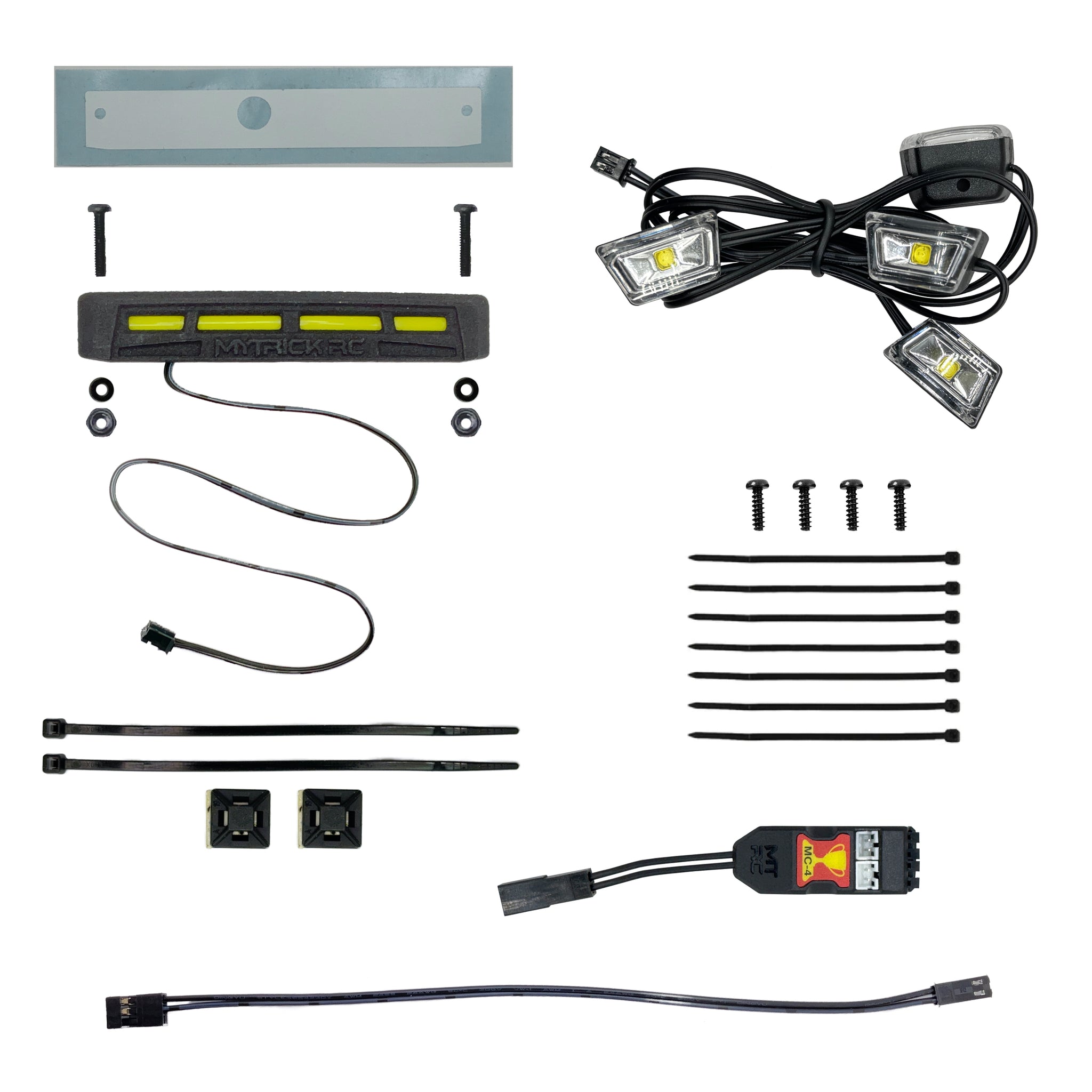

What's Included

• Scale Headlight Grill Module
• Pro Rock Lights
• MC-4 Lighting Controller
• Receiver/Servo Power Cable
• Mounting Screws, Washers, & Nuts
• Zip Ties & Zip Tie Mounts
• Drill Guide Template Sticker (used when you install your kit)

Installing Your Light Kit

To Trick Out your VRD Stance, you'll need a few tools:

• Body Reamer
• Allen Drivers 1.5mm & 2mm
• Needle Nose Pliers
• Nippers

Installing Your Headlight Grill

We've included a handy Template Sticker to help align your Headlight Grill to your Vehicle Body. Peel the backing, carefully align it, and adhere the Template Sticker. Now you can use it as a guide for locating and sizing the three holes to ream.

After removing the Template Sticker, you might want to use your body reamer to clean up the holes for the two Mounting Screws. The openings should be just big enough for the shaft of the screws to fit through, but no so big as to let through the washer or screw head.

You can also use the body reamer to clean up the hole for the LED Cable. The opening needs to be just large enough to feed the LED plug through.

Using the Mounting Screws, Washers, and Nuts, attach the Grill to your Vehicle Body. Take care not to overtighten the screws which could strip the threads.

Here is an example of how the cabling might look inside the Body shell. You can use the supplied Cable Clips to manage your cable routing cleanly. Attach the Grill Cable to the Attack Light Regulator. You can plug the Attack Light Regulator into a power source such as your Receiver.

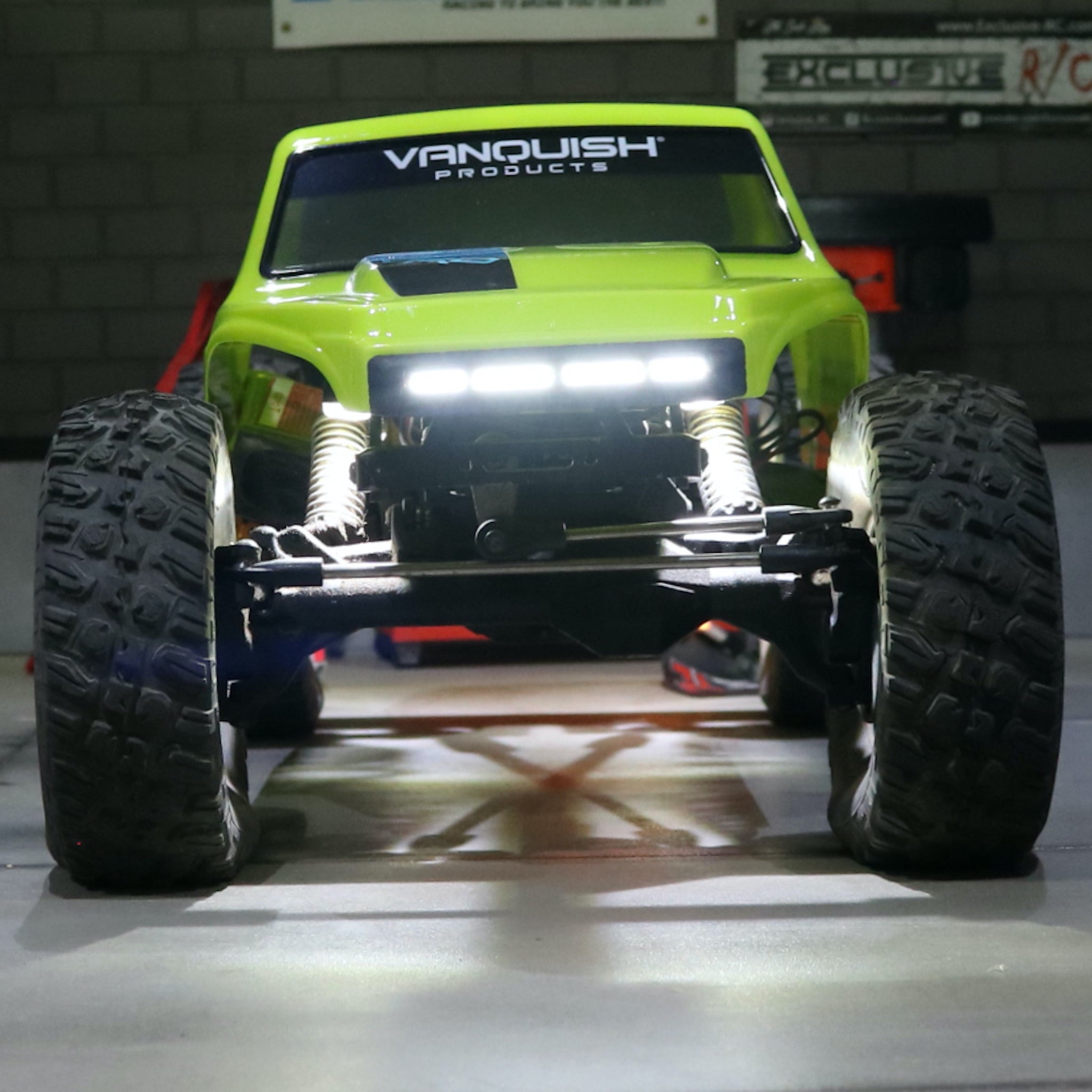

Here is how the finished install should look from the front view...

and the side view.

Headlight Grill Installed!

Installing Your Pro Rock Lights

Using two of the included screws, mount two Rock Light Pods to the rear of your chassis.

Mount the other two Rock Light Pods to the front of your chassis.

Plug It All Together

Using an included Zip Tie, mount your MC-4 Lighting Controller to the chassis.

Plug your Pro Rock Lights into one of the High Power Ports (Black) on your MC-4.

Plug your Headlights into the other Black High Power Port on your MC-4.

Plug your MC-4 into the included Receiver/Servo Power Cable and plug that into your Receiver/Servo.

Apply power and light it up!

Here is a top view showing the Headlight dispersion pattern...

and here's a top view of the Rock Lights on.
